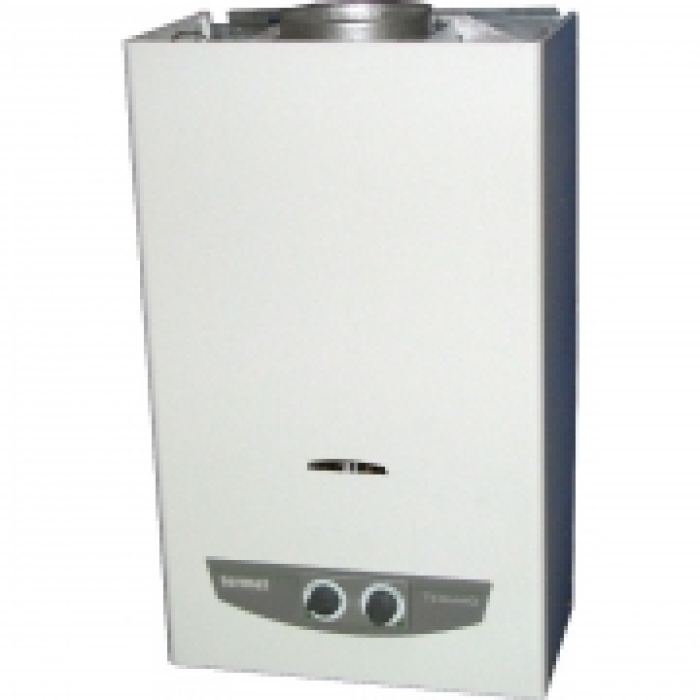

Chimney geyser Termet TermaQ G-19-01 - automatic water heater designed for instant supply of warm water. Power adjustment from 4.8 to 19.2 kW. Works even at very low water pressure - below 10 kPa. Water heating up to 50°C - 5.7 l/m.

The TermaQ G-19-01 column is multi-feed, which makes it possible to supply warm water to the kitchen sink, washbasin, shower room, etc. at the same time.

Copper heat exchanger. Adjustment of water/gas supply. Stainless steel burner, atmospheric, injection. The special design of the water-gas unit guarantees comfort of use, long-term and economical operation. There is a gas flow stabilizer.

Equipment
Automatic valve that cuts off the gas flow to the burner when the water flow is closed.
Protection against the release of combustion products into the room.
Protection against overheating of water in the heat exchanger.
Protection against the disappearance of chimney draft.
Gas protection.

Characteristics:

Chimney type
Rated power 19.2 kW
Water temperature max 65°С
Water heating Δt ≤ 25°C 11.5 l/m
Water heating Δt ≤ 50°C 5.7 l/m
Operating water pressure 0.1÷10 bar
Efficiency 88%
Ignition type piezoelectric
Noise level 55 dB
Gas connection G 3/4"
Water connection G 1/2"
Chimney diameter 132 mm
Dimensions H×W×D 585×360×220 mm
Weight 10.5 kg
Country of manufacture Poland
